SMGX250/15H1 High temperature high pressure cleaner

SMGX250/15H1 High temperature high pressure cleaner

Working Principle

High-pressure cleaner is water as the working medium, composed of two major parts: booster pump and power drive unit. Usually, the power drive pump converts ordinary water into high pressure and low flow rate water by completing a suction and discharge process on water, and then delivers it to the high-pressure pipeline so that it reaches the high-pressure nozzle with certain energy. The aperture of the high-pressure nozzle is much smaller than the diameter of the high-pressure pipeline, so the water arriving at the high-pressure nozzle must be accelerated in order to pass through the nozzle. In this way, the nozzle can turn the high pressure and low flow rate of water into a low pressure and high flow rate of the jet. High-pressure cleaners because of the use of high-pressure water column to clean up dirt, so high-pressure cleaners are also recognized as one of the world's most scientific, economic and environmentally friendly cleaning methods.

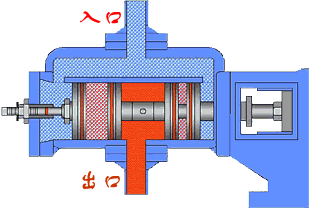

Wuxi Shengmei high pressure washer uses a set of valves and pump head to form a system where the plunger pulls water into the inlet valve and pressurizes it to pass through the outlet valve. The valve controls the water through the pump by preventing backflow. The valve consists of a spring and a bracket, and the pressure operation is accomplished due to the different pressure difference between the two sides of the valve. When the pressure acting on the valve is greater than the capacity of the spring, the valve opens. In the opposite stroke, the water automatically squeezes the holder against the valve seat, keeping the valve closed and preventing backflow.

The heart of the high-pressure cleaner is the high-pressure pump, and they are in an irreplaceable position. The total stroke L of the plunger reciprocating motion of the plunger pump is constant and is determined by the lift of the cam. The size of the oil supply per cycle of the plunger depends on the oil supply stroke, which is not controlled by the camshaft and is variable. The start of the oil supply does not vary with the oil supply stroke. Turning the plunger can change the end time of oil supply and thus the amount of oil supply. When the plunger pump works, the cam on the camshaft of the injection pump and the plunger spring force the plunger to make upward and downward reciprocating movements, thus completing the task of pumping oil.

When the plunger moves in one direction, there is negative pressure in the cylinder, then one check valve is opened and the liquid is sucked into the cylinder, when the plunger moves in the other direction, the liquid is compressed and the other check valve is opened and the liquid sucked into the cylinder is discharged. This way of working after continuous movement formed a continuous oil supply.

Product parameters

Performance Features

High-pressure cleaners are characterized by high pressure, low flow rate, and matching different accessories to solve different problems. So it can be multi-purpose, easy and simple to use. And in the work process has a very fast work efficiency, because the use of water, not easy to corrode machinery and pollution of the environment, so high-pressure washing machine high-pressure jet cleaning process can achieve the environmental effect of saving water resources, the use of low cost and other advantages.
 High-pressure washing machine can clean a variety of different shapes and complex structure of the parts, and many narrow space dirt can be thoroughly clean, so in the use of the work can be more effective, and in the clean after no further clean treatment, the overall work process will become more simple and easy, saving energy and low cost of use is particularly high.

Applicable fields

High-pressure cleaner is widely used in energy and electricity, petroleum and petrochemical, steel smelting, machinery manufacturing, automobile manufacturing, high-speed railway manufacturing, ship manufacturing, military manufacturing, aerospace and other industries. It can carry out: paint removal and rust removal cleaning of automobile painting line; rust removal cleaning of engineering machinery paint removal; descaling cleaning of various reaction kettles; paint removal and rust removal cleaning of large barrels and tanks; cleaning and renovation of highways and bridges, concrete crushing, concrete wall brushing and other cleaning projects in various aspects.

Product use and maintenance

1. This machine is not suitable for use in a closed indoor environment again.
2. The power source of water must be cut off after each work.
3. Never use the machine when the cable or some important parts such as safety device, high pressure pipe, gun, etc. are damaged.
4. Only use liquid detergent within the design range or recommended by the manufacturer, not strong acidic or strong alkaline detergent with high concentration. Use caution whenever using cleaners.
5. Do not start the machine when there are people staying at the work site, unless the non-other mother is wearing protective clothing.
6. High-pressure spraying can be dangerous if not done correctly. Never point the gun at other people, animals, electrical devices or the machine.
7. High pressure hose, accessories and connections are very important for the safe use of the machine, it is recommended to use the manufacturer's recommended accessories. (Proper use, prevent its twisting, falling and crashing, and protect these accessories from damage is important to the machine)
8. Never use the gun to point at yourself to clean clothes and shoes.
9. Never allow children or people unfamiliar with the machine to operate and use.
10. Safety devices include: gun safety buckle, electrical overload protection device, high-pressure pump relief protection valve.
11. For the machine without automatic stop function, must not be operated for more than 2 minutes with the gun off, otherwise, the temperature of the circulating water will be hormonally elevated and damage the seal pump.
12. For the machine with automatic stop function, the automatic stop time should not exceed 5 minutes.
13. After each operation is completed, you need to press the shutdown switch OFF.
14. It is normal for the new machine to have a few drops of water dripping out from the water seal when it is operated under normal conditions of experiment again.
15. Please do not work in a sealed or inadequately ventilated environment, and never cover the machine.
16. Never use the machine again in the case of thunder or rain, do not spray water on the machine or electrically charged body.
17. When using any machine, especially observe the following rules.
18. Never touch the machine when your hands are wet or barefoot.
19. When the machine is starting, never pull the plug out of the socket at will.
20. When the machine in the operation of the current suddenly interrupted, please immediately shut down the machine.
21. It is strictly forbidden to use the machine in a flammable and explosive environment.

Automatic stop system (optional)
Please note that this session is equipped with ASS (Automatic Stop System) controlled by the pressure valve, in the case of power on, press or release the trigger on the gun, the machine will automatically start or stop, each time after releasing the trigger to open the safety buckle on the gun, to prevent the gun shell accidentally open, resulting in a dangerous accidental start of the machine.
1. Any accidental start-up without pressing the gun is caused by the presence of air bubbles or malfunctions in the water.
2. In the case of automatic stop system working mode, personnel should not leave the machine for more than 5 minutes, otherwise, for safety reasons, the current must be turned off.
3. Please check if the standard devices such as gun and high pressure hose are connected correctly and if there are any water leaks.

Common faults and troubleshooting

After-sales guarantee

高压冷热水机High pressure hot and cold water machine
